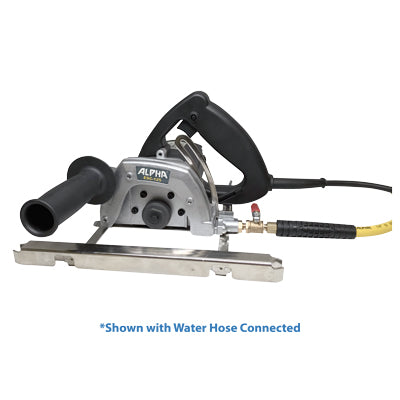

Alpha 5" ESC-125 Wet/Dry Stone Cutter

Alpha® has re-designed the popular AWS-125 Wet Stone Cutter, which had changed the way we cut out sink holes using a manual cutting application. The ESC-125 was created based upon the feedback from fabricators in preparation for the new silica rule change by OSHA in 2017. The AWS-125 will be discontinued as soon as the current stock is depleted with the future orders being replaced with the ESC-125. OSHA is now enforcing the regulation to reduce the silica airborne particles, by cutting with water, to keep the dust down on the floor or to cut with a dust suction system with a HEPA vacuum connected.

Alpha ESC-125 Changes:

• Added a Dust Cover on the side of the blade guard to redirect the dust from the cutting edge into an attached vacuum

• Newly designed Aluminum Manifold System that delivers sufficient water jet to cool the cutting edge as well as removes the slurry from the cutting line ahead of the stone cutter

• Alpha® upgraded the water hose to a Hybrid Kink/Memory-Free Water Hose that comes with a quick disconnect garden hose adapter. The new water feed system delivers ample volume without interruption and allows for an easy disconnect of the garden hose when needed.

• Alpha® also changed the way to adjust the cutting depth by moving the height adjustment arm to the side of blade guard, so the adjustment is made by the Clamping Lever. The new Clamping System ensures cutting with stability, whether doing a step cut 3cm sink hole cut-out or making a groove for the reinforcement rod with much smaller diameter blades.

Features

• Precision cuts every time

• Powerful motor for use on granite, quartz surfaces, marble, limestone, concrete, and sintered slabs

• Water-feed supply eliminates the harmful dust particles

• Base plate allows guides to be used in multiple ways

• Dust cover for HEPA vacuum connection

• New clamping system ensures cutting stability

• Included self-stick felt strips protects the work surface from scratches

• Built-In GFIC (Ground Fault Circuit Interrupter)

• Great for use with curve cutting blades

• Improved powerful motor outputs sufficient power to cut 3cm thick granite, quartz surfaces, marble, limestone, concrete and sintered slabs using a standard 110V – 15 amp circuit

• The included EasyOn-EasyOff Sleeve bundles the up power cord and water hose to minimize the drag while cutting a long distance on the table.

Specifications

• Rating: 110/220 Volts

• Amperage: 11.2A/5.5A

• Power: 1200W

• No Load Speed: 12,000n RPM

• Weight: 8.9 lbs.

• Arbor: ⅞” (22.23mm)

• Cutting Disc Diameter: 5” (125mm)

• Max. cutting Depth: 1-⅝” (41mm)

• Cord: 15 ft (4.5m) Single Phase

• Plug Type: A(100V)/ C(220V)

• Included Equipment

• Dust Cover

• (3) Knob Belt

• TT Ruler Guide (Reversible)

• Water Hose Assembly (15ft / 4.5m)

• Quick Connect Adapter

• Side Handle

• Screw (M6x30-left)

• Flange 3

• Carbon Brush Set

• T-Handle Wrench

• Open End  Wrench (22mm)

• Self-Stick Felt Strip Set

• Ground Fault Circuit Interrupter

• EasyOn-EasyOff Sleeve

• (3) SS Flat Head Screw (M4x10)

• Water Valve Assembly
