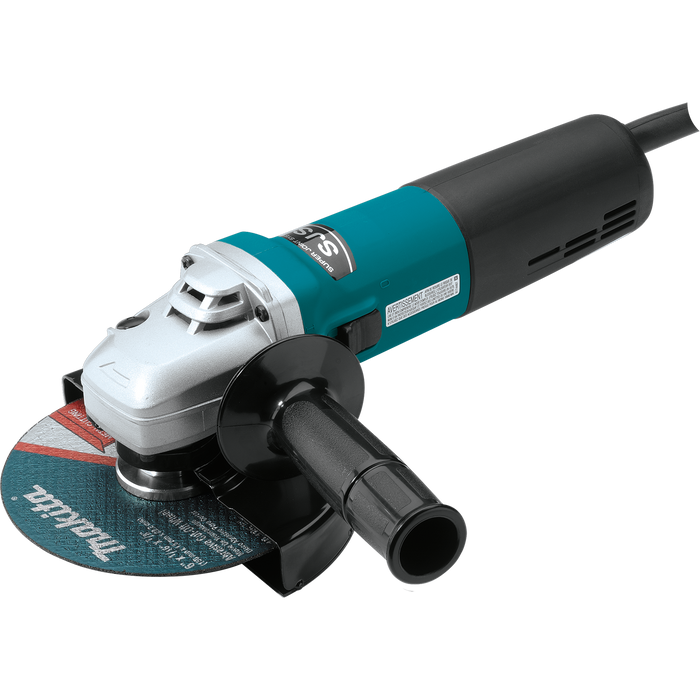

Makita 9566CV 6" Variable Speed Grinder

Makita’s 6” SJS™ Cut-Off/Angle Grinder combines 13 AMP variable speed power with comfort and motor-protection features for longer-lasting stone grinding and polishing performance. The 9566CV is engineered with Makita’s innovative SJS™ mechanical clutch system to help protect the gears for longer tool life.

Features

• Powerful 13.0 AMP motor delivers more output and variable (4,000 - 10,000) RPM

• Variable speed control dial enables the user to match the speed to the application

• Constant speed control automatically applies additional power to the motor to maintain speed under load

• Soft start suppresses start-up reaction for smooth start-ups and longer gear life

• Electronic current limiter helps protect the motor from overload

• Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life

• Spiral bevel gears for smoother rotations and a more efficient transfer of energy

• Zig-zag varnish protects the armature coil from dust and debris for longer motor life

• Two position adjustable side handle for operator convenience

• Slide switch with lock-on setting for continuous use

• SJS® Super Joint System is a mechanical clutch system that helps prevent motor and gear damage in grinders if the wheel is forced to a stop. The drive shaft from the armature to the drive gear is spring-loaded during normal grinding load. If binding occurs or the wheel is forced to stop, the spring is compressed allowing the drive shaft to slip. The gear tension is minimized while the armature continues to rotate, which helps prevent motor burn-out. SJS® is a mechanical clutch system, not electronic, so the grinder does not require a restart if the wheel binds.

Specifications

• Wheel Diameter: 6”

• AMPS: 13

• No Load Speed (variable speed)’ 4,000-10,000 RPM

• Spindle Type: ⅝” - 11 UNC

• Lock-On Switch: Yes

• Lock-Off Switch: No

• Overall Length: 11-¾”

• Net weight: 5.3 lbs.

• Variable speed dial: Yes

• Power Type: Corded

• Bind-Up Control: Yes

• Includes:

•  (1) Lock Nut Wrench (782412-6)

• (1) Lock Nut (224574-9)

• (1) Side Handle (153489-2)

• (1) Inner Flange, 9566CV/PC (224390-9)

• (1) 6" Cut-Off Wheel Guard (165486-6)

• (1) 6" Cut-off Wheel, Metal (724117-A-25)
