Product Details

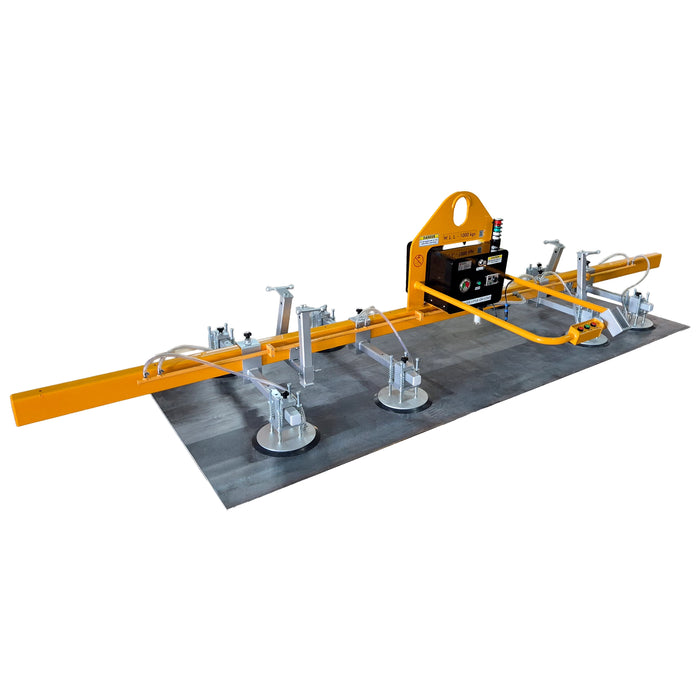

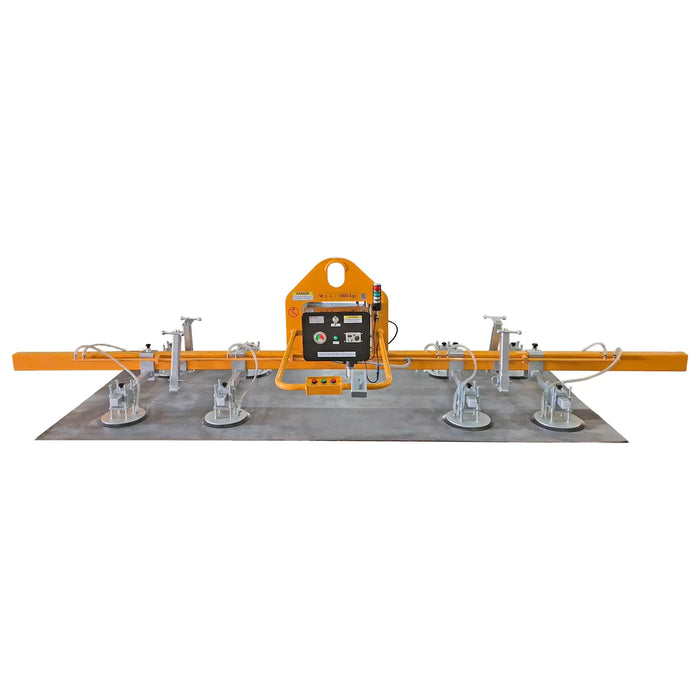

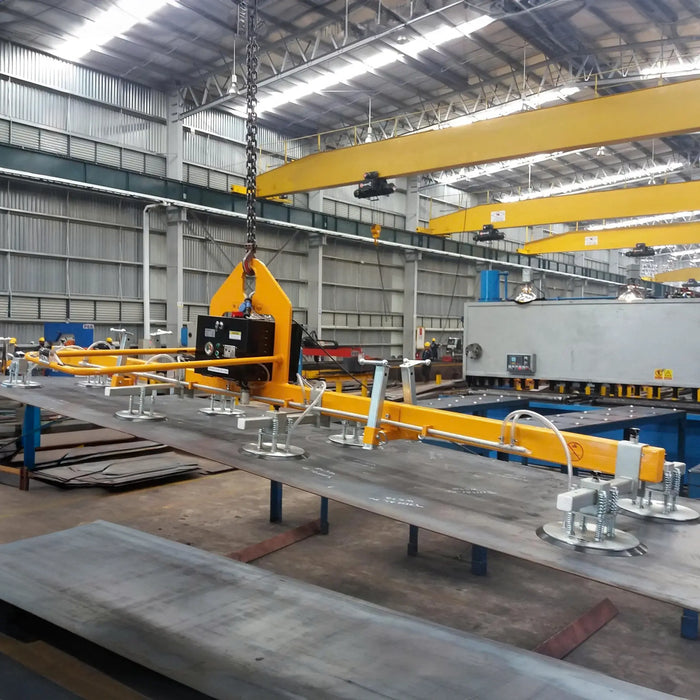

Aardwolf Electric Vacuum Lifter
The Aardwolf Electric Vacuum Lifter is designed for lifting flat, non-porous materials such as metal sheets. The main beam and vacuum pad positions are adjustable to accommodate different sheet sizes. Depending on the model, the system supports loads of up to 2000 kg and sheet dimensions up to 236.2″ × 70.9″.
Each unit is equipped with a pressure monitoring system, automatic vacuum pump reactivation in case of pressure loss, and audio-visual alerts for safe operation. It is suitable for use in workshops and industrial environments.
Features
- Adjustable Beam and Pad Positions: Suitable for handling different sheet sizes.
- Lifting Capacities: Available models support 500 kg, 1000 kg, or 2000 kg loads.
- Safety Alerts: Audio-visual indicators notify the operator when pressure drops.
- Automatic Pump Activation: The system automatically restarts the vacuum pump if pressure drops below the safe level.
- Battery-Powered Alarm: Runs on a 3.7V LiPo battery, up to 7 hours continuous use and 720 hours standby.
- Electric Motor: 3-phase 380V power input with vacuum flow rates up to 8.7 m³/h, depending on model.
- It uses an electric vacuum pump and is available in configurations with 1, 4 or 8 pads.
- Depending on the model, the system supports loads of up to 2000 kg and sheet dimensions up to 236.2″ × 70.9″.
